UTERS supply servo valve sintered tube filter tubing can be customized in various specifications

UTERS supply servo valve sintered tube filter tubing can be customized in various specifications

UTERS Standard Accuracy Servo Filter Element

A67999,072-1202-10,072-1202-10

Key words:

Stainless Steel Servo Filter Element

Servo System Filter Disc

Precision Servo Filter Element

Miniature Valve Body Filter Element

Servo Valve Filter Disc

Servo Valve Filter Tube

Classification:

Miniature valve body filter element

E-mail:

sales@utersind.com

Product inquiry

hiddenValue

Product Description

Introduction:

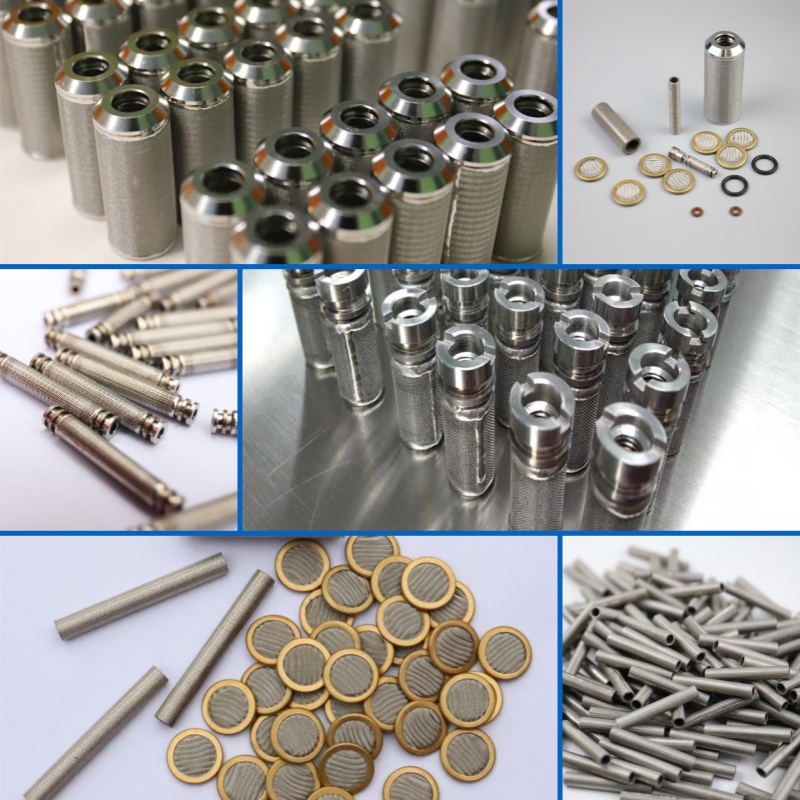

The micro-valve filter element generally refers to a filter element which is welded by vacuum electron beam, and can also be a filter element having a diameter of less than 20 mm, a minimum diameter of 5 mm and a length of less than 100 mm. It is commonly used in hydraulic and pneumatic control systems for various precision servo valve hydraulic oil or gas filtration, with high precision, good strength and rigidity, low resistance, large flow, high cleanliness, easy to use, stable filter holes, long service life It can replace the bronze powder sintered filter (first generation valve filter) and the skeleton-coated metal mesh filter and the imported wire wound filter to make the servo system more stable and reliable. It has been widely used in aerospace, hydraulic machinery, precision machine tools. , automatic control and other fields.

Filter disc: such as A67999-065, A67999-100, etc., suitable for various types of servo valves such as D661, D631, D630, etc. There are various filtering accuracies available, such as 10 microns, 20 microns, and 50 microns. The filter cartridge is mostly foldable and made of 304 or 316 stainless steel sintered filter material.

Servo valve filter tube: also commonly known as servo valve filter tube or servo valve filter element tube, it is a key component used in servo valve hydraulic systems to filter impurities in the medium. It is usually used in conjunction with the filter element or as a support/protective structure for the filter element. Its core function is to ensure the cleanliness of the hydraulic oil, fire-resistant oil and other media entering the servo valve, and to avoid servo valve jamming, wear or failure caused by particle pollution.

There are various models of servo valve filter tubes, commonly including A67999 series, PR3125Q, HQ25.03Z, etc. The following is a detailed introduction:

A67999 series: such as A67999-010, A67999-050, A67999-065, etc., can be used to replace Muge servo valve filter discs, suitable for various models of servo valves such as D661, D631, etc. This series of filter tubes is usually made of stainless steel material, which has good corrosion resistance and strength.

PR3125Q: Produced by Parker PARKER, it belongs to the filter tube matched with the folding filter element of the servo valve front pipeline. It is generally used in conjunction with folding filter elements of specific specifications, which can provide high filtration efficiency and large filtration area.

HQ25.03Z: Commonly used in servo valve hydraulic systems in industrial fields such as steel mills, it can filter hydraulic oil and other media, help remove impurities, and ensure the normal operation of servo valves. The filter tube material usually has certain compressive and corrosion-resistant properties.

152-80-002-1-22, including models 152-80-002-1-22 and 152-00-033-1-22, belong to sintered filter tubes with good filtration performance and mechanical strength. They can be used in various servo valve systems to adapt to different working pressures and medium requirements.

072-1202-10: This model of filter tube can be used as an accessory for electro-hydraulic servo valve filters, with specific dimensions and filtration accuracy, which can meet the requirements of servo valves for oil cleanliness and ensure the precise control performance of servo valves.

Features:

1. the welding penetration is large, the error is small, and the weld strength is high; 2. the weld is narrow, generally only 1-1.5mm, very suitable for the manufacture of small-size filter cartridges (solving the original impossible problem); 3. the deformation is small, the pass rate is high, and the quality is stable; 4. since the welding is not oxidized, the weld bead is fine and the components are beautiful; 5. can be used to replace imports and for military products.

In short, although the servo valve filter element does not directly undertake the most delicate filtration task, its structure and performance are crucial to the stability of the entire filtration system and the service life of the servo valve. When selecting, it is necessary to comprehensively consider parameters such as system pressure, medium type, and interface size.

Package & Shipment:

Package: Plastic bag inside, Paper box outside. Usually we pack filter element by paper boxes. And use export standard wooden boxes or pallets for heavy goods.

Shipment: Express For Small Package, and also could offer Express lines service for Southeast Asian countries, Central Asian countries, Middle East countries; Air Shipment could ship goods above 45 kgs with faster time; Sea Shipment could ship goods with big volume or heavy total weight, with longer time; China-Europe freight train could ship goods to the countries and regions along the route, the destination is in Europe. and could offer door to door service!

Service Information:

Awesome & timely pre-sale service; Stable & reliable product quality; No delay production period and delivery time; Efficient & Economic transport plan; Guaranteed after-sale quality assurance system; 12 months quality warranty after shipment; OEM and Customized design and production.
