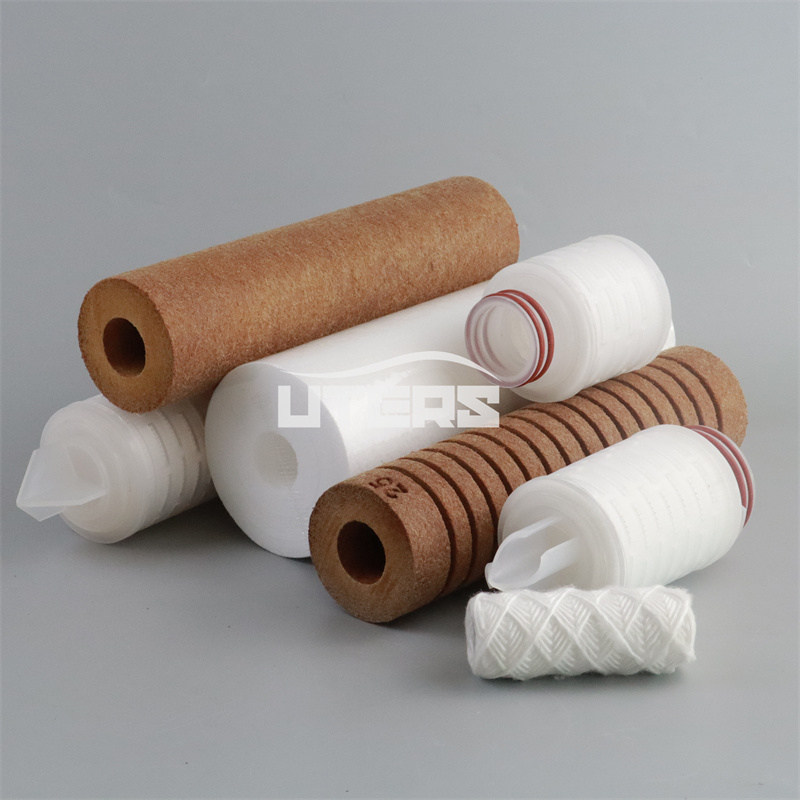

10 inch 20 inch 30 inch UTERS phenolic resin filter cartridge
Key words:
G78C8-3N 3M
Phenolic Resin Filter Element
Service Station Filter Element
Shield Machine Filter Element
Turbine Filter Element
hiddenValue
- Product Description
-
Overview:
1. Large diameter of 6 inches/152mm, one end open, the filtering fluid flows from inside to outside, it can cause pollution by falling impurities after filtering. 2. The deep folding structure and multi-layer filter membrane combination have higher filtration efficiency than traditional melt blown and wire wound filter elements. At the same time, the large diameter design of the filter element increases the effective filter area and can greatly extend the life of the filter element and reduce the number of filter elements. And reduce the size of the filter housing, saving costs. 3. Suitable for filtration of various large-flow fluids: RO security filtration, seawater desalination filtration, cooling water filtration, chemical raw materials, beverages, biopharmaceuticals, solvents, water filtration. 4. The filter element is produced, cleaned, tested and packaged in a clean room with a cleanliness of 10000.
Features:
Structural material: melt-blown fine PP polypropylene fiber filter membrane; Support film: PP polypropylene; Frame: PP polypropylene; Gasket/seal ring: EPDM EPDM, Viton fluorine rubber, Silicone silicone rubber, Buna-N nitrile rubber, Teflon PTFE coated fluorine rubber.
Dimensions:
Outer diameter: 6"<152mm>, Length: 20"<508mm>, 40"<1016mm>, 60"<1524mm>. Performance parameters: Filter accuracy: 1, 3, 4.5, 10, 20, 40μm. Working temperature: 140οF <60℃>. It is recommended to replace the pressure difference: 30psid<2.1bar>.
Application:
Food and beverage industry; Seawater desalination treatment; Cooling water system; Industrial water; Reverse osmosis prefiltration; Process water and wastewater treatment.
Introduction To Raw Materials：
The filter element is the core component of the filtration system, and its performance depends on the selected raw materials. Filter cartridges made of different materials are suitable for different filtration scenarios, such as liquids, gases, particles, chemicals, etc. The following are common classifications of filter raw materials: fiberglass, filter paper, polypropylene (PP) fiber, stainless steel filter screen, sintered metal, polytetrafluoroethylene (PTFE) membrane, etc.
Packing & Shipping:
Package: Plastic bag inside, paper box outside. Usually we pack filter element by paper boxes and use export standard wooden boxes or pallets for heavy goods.
Shipment: Express For Small Package,and also could offer Express lines service for Southeast Asian countries, Central Asian countries,Middle East countries; Air Shipment could ship goods above 45 kgs with faster time; Sea Shipment could ship goods with big volume or heavy total weight,with longer time; China-Europe freight train could ship goods to the countries and regions along the route, the destination is in Europe.and could offer door to door service!
Service Information:
Awesome & timely pre-sale service; Stable & reliable product quality; No delay production period and delivery time; Efficient & Economic transport plan; Guaranteed after-sale quality assurance system; 12 months quality warranty after shipment; OEM and Customized design and production.
